CE800B
USB KVM Extender

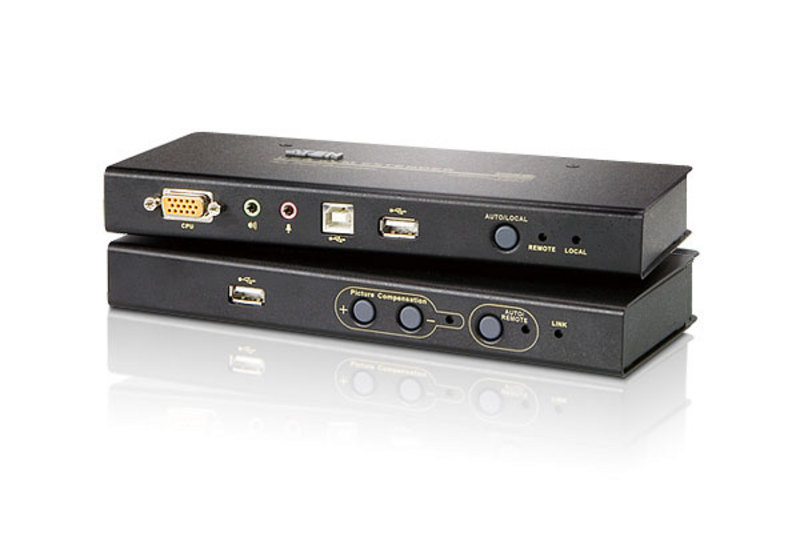

The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place – away from dust, dirt, and harsh environmental influences.
The CE800B has built-in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC-only and KVM switch installation.
CE800B
USB KVM Extender
The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place – away from dust, dirt, and harsh environmental influences.

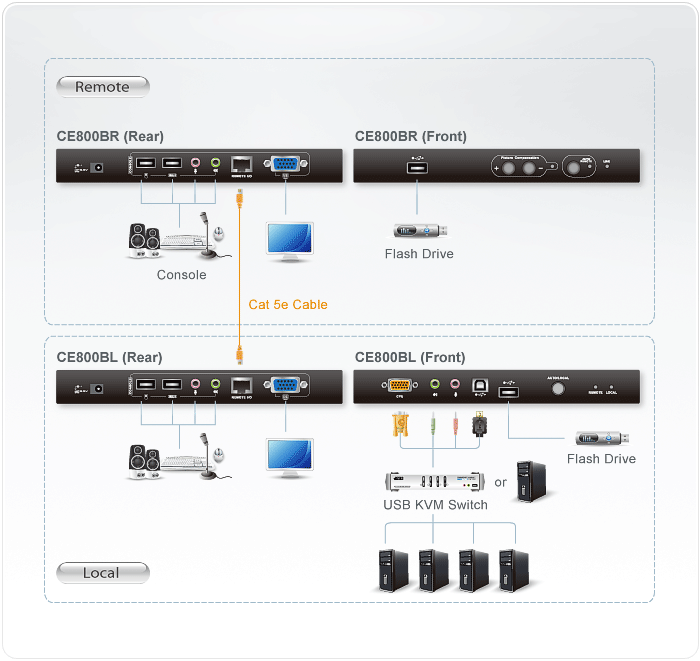

- Cat 5e cable to connect the Local and Remote Units – up to 250 m (825 ft) apart
- Dual console operation – control your system(s) from both the local and remote consoles
- Pushbutton selection of the active console
- Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
- Special security feature requires login when mounting an external USB storage device on the remote unit
- Supports Wide Screen formats *
- Supports VGA, SVGA, and multisync monitors ?local monitor supports DDC; DDC2; DDC2B
- High resolution video – up to 1600 x 1200 @ 60 Hz
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
- Supports stereo speakers and stereo microphone
- Supports Microsoft Intellimouse and the scrolling wheel on most mice
- Upgradable firmware
- Built-in ASIC for greater reliability and compatibility
* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
CE800B
USB KVM Extender
The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place – away from dust, dirt, and harsh environmental influences.
CE800B
USB KVM Extender
The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place – away from dust, dirt, and harsh environmental influences.

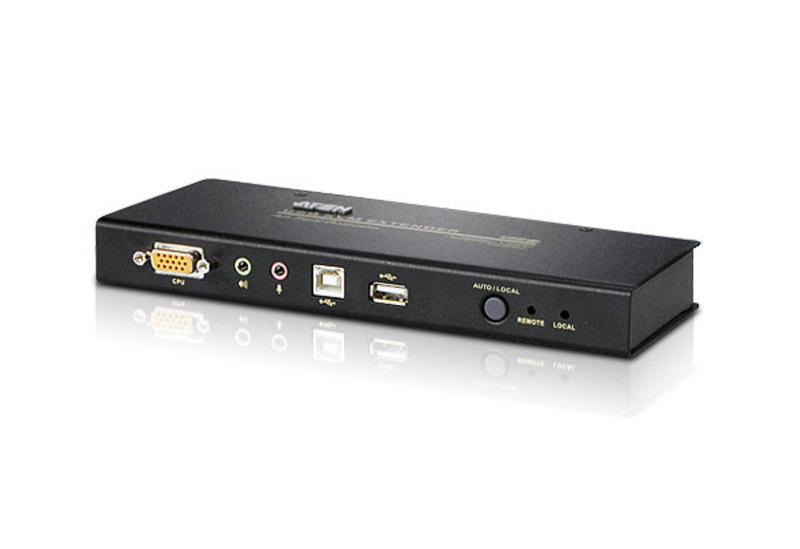

| Function | CE800BL | ||
| Computer Connections | 1 | ||
| Connectors | Console | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speakers | 1 x Mini Stereo Jack (Green) | ||
| Microphone | 1 x Mini Stereo Jack (Pink) | ||
| KVM Ports | Keyboard/ Video / Mouse | 1 x SPHD-15 Female (Yellow) | |
| USB Port | 1 x USB Type B (Female) 1 x USB Type A (Female) |
||
| Speakers | 1 x Mini Stereo Jack (Green) | ||
| Microphone | 1 x Mini Stereo Jack (Pink) | ||
| F/W Upgrade | 1 x 4-conductor 3.5 mm Jack | ||
| Power | 1 x DC Jack | ||
| Unit to Unit (Link) | 1 x RJ-45 | ||
| Switches | Operating Mode Selection | 1 x Pushbutton | |
| Picture Compensation |
N/A | ||
| LEDs | Local | 1 (Green) | |
| Remote | 1 (Green) | ||
| Link | N/A | ||
| Compensation | N/A | ||
| Video | 1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1024×768@60Hz at 250m | ||
| Power Consumption | DC5V, 6W | ||
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.50 kg | ||
| Dimensions (L x W x H) | 20.00×8.15×2.63cm | ||
| Function | CE800BR | ||
| Computer Connections | N/A | ||
| Connectors | Console | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speakers | 1 x Mini Stereo Jack (Green) | ||
| Microphone | 1 x Mini Stereo Jack (Pink) | ||
| KVM Ports | Keyboard/ Video / Mouse | N/A | |
| USB Port | 1 x USB Type A (Female) | ||
| Speakers | N/A | ||
| Microphone | N/A | ||
| F/W Upgrade | 1 x 4-conductor 3.5 mm Jack | ||
| Power | 1 x DC Jack | ||
| Unit to Unit (Link) | 1 x RJ-45 | ||
| Switches | Operating Mode Selection | 1 x Pushbutton | |
| Picture Compensation |
2 x Pushbutton | ||
| LEDs | Local | N/A | |
| Remote | 1 (Green) | ||
| Link | 1 (Green) | ||
| Compensation | 1 (Orange) | ||
| Video | 1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1024×768@60Hz at 250m | ||
| Power Consumption | DC5V, 6W | ||
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.50 kg | ||
| Dimensions (L x W x H) | 20.00×8.15×2.63cm | ||
